Barcode Logics offers value through products and services designed to meet or exceed our customers' requirements. We ship Next Day from our fully stocked warehouse directly to you. 2nd day ships free. Next Day gets 2nd day rate.

These high performance close proximity barcode readers offer extremely fast decoding with a scan repetition rate of 200 to 400 scans per second.

---

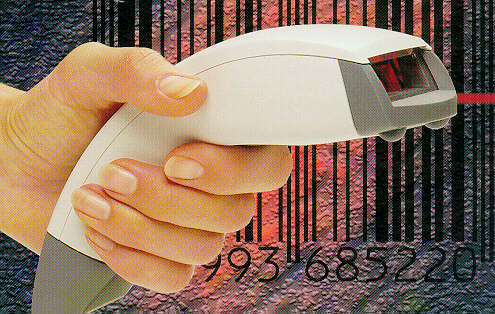

UBI HANDHELD CCD SCANNER MODEL: SCANPLUS 1800


[specifications]

---

** The ScanPlus 1800 reads at 400 scans per second, providing nearly instant reading of codes, including those printed poorly, placed on curved surfaces, or covered with a laminate.
** Capable of reading very high density codes with bars as narrow as .004 inches (4 mil).
** Read at a distance up to 4 inches.
** Connect the ScanPlus 1800 to over 300 different PCs and terminals (OCIA TEC or NCR), IBM 4683, as well as single or dual RS-232 terminals.
** Highly Ergonomic: The ScanPlus 1800 weighs only 5.1 ounces. Scanning is intuitive and effortless.
** ScanPlus 1800 has no moving parts and functions after repeated drops to commercial flooring.


Model                           SCANPLUS 1800
                                $295

Light Source Red LED 670 nm     *
16 Bit Microprocessor           *
Scan Rate (scans per second)    400
Narrow bar resolution           .004 inches (4 mil)
Keyboard Wedge Interface        *
Single or Dual RS-232 Interface *
Wand Emulation                  *
Laser Emulation                 *
Cables Included                 *

Item#          SCANPLUS 1800                                       PRICE    COMMENT

UBI-180317-00  PC Keyboard Wedge                                   295.00  *1
UBI-180311-00  Wand Emulation without On/Off Button                295.00  *1
UBI-180311-10  Wand Emulation with    On/Off Button                295.00  *1
UBI-180312-00  RS-232 Interface                                    295.00  *2, *3
UBI-180313-00  IBM 4683-5B                                         295.00  *1
UBI-181313-00  IBM 4683-9A                                         295.00  *1
UBI-180315-00  OCIA NCR 7052/7053                                  295.00  *1
UBI-700304-00  Dual RS-232 Output Option                            95.00
UBI-700900-00  Standard Power Supply                                35.00
UBI-701900-00  110-240V European Power Supply                      120.00

   *1 Cable Required & Included. *2 Requires Power Supply, *3 Dual RS-232 Extra

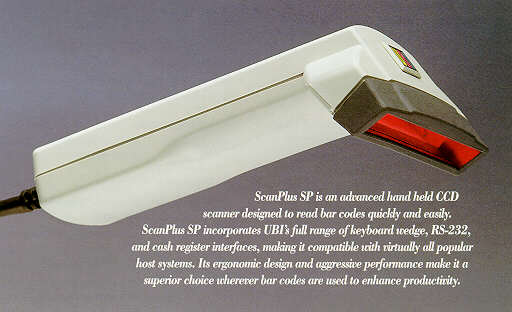

UBI HANDHELD CCD SCANNER MODEL: SCANPLUS SP


[specifications]

---

** Set the ScanPlus SP to read at 50 to 230 scans per second, providing nearly instant reading of codes, including those printed poorly, placed on curved surfaces, or covered with a laminate.
** Capable of reading very high density codes with bars as narrow as .005 inches (5 mil).
** Read at a distance up to 1.3 inches.
** Connect the ScanPlus SP to over 300 different PCs and terminals (OCIA TEC or NCR), IBM 4683, as well as single or dual RS-232 terminals.
** Highly Ergonomic: The ScanPlus SP weighs only 4.6 ounces. Scanning is intuitive and effortless.
** ScanPlus SP has no moving parts and functions after repeated drops to commercial flooring.


Model                           SCANPLUS SP        SCANPLUS ER
                                $295              $395

Light Source Red LED 660 nm     *                  *
16 Bit Microprocessor           *                  *
Scan Rate (scans per second)    50-230             300
Narrow bar resolution           .005 inches (5mil) .006 inches (6 mil)
Keyboard Wedge Interface        *                  *
Single or Dual RS-232 Interface *                  *
Wand Emulation                  *                  *
Laser Emulation                 *                  *
Cables Included                 *                  *

Item#          SCANPLUS SP                                         PRICE    COMMENT

UBI-320317-00  PC Keyboard Wedge                                   295.00  *1
UBI-320311-00  Wand Emulation without On/Off Button                295.00  *1
UBI-320311-10  Wand Emulation with    On/Off Button                295.00  *1
UBI-320312-00  RS-232 Interface                                    295.00  *2, *3
UBI-320313-00  IBM 4683-5B                                         295.00  *1
UBI-321313-00  IBM 4683-9A                                         295.00  *1
UBI-320315-00  OCIA NCR 7052/7053                                  295.00  *1
UBI-700304-00  Dual RS-232 Output Option                            95.00
UBI-700900-00  Standard Power Supply                                35.00
UBI-701900-00  110-240V European Power Supply                      120.00

   *1 Cable Required & Included. *2 Requires Power Supply, *3 Dual RS-232 Extra

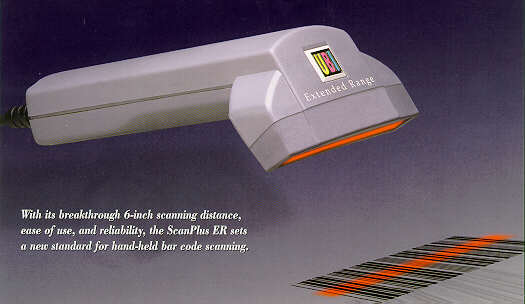

UBI HANDHELD CCD SCANNER MODEL: SCANPLUS ER EXTENDED RANGE


[specifications]

---

** The ScanPlus ER reads at 300 scans per second, providing nearly instant reading of codes, including those printed poorly, placed on curved surfaces, or covered with a laminate.
** Capable of reading very high density codes with bars as narrow as .006 inches (6 mil).
** Read at a distance up to 6.0 inches.
** Read barcodes up to 6.0 inches in length.
** Connect the ScanPlus ER to over 300 different PCs and terminals (OCIA TEC or NCR), IBM 4683, as well as single or dual RS-232 terminals.
** Highly Ergonomic: The ScanPlus ER weighs only 4.6 ounces. Scanning is intuitive and effortless.
** ScanPlus ER has no moving parts and functions after repeated drops to commercial flooring.


Model                           SCANPLUS SP        SCANPLUS ER
                                $295              $395

Light Source Red LED 660 nm     *                  *
16 Bit Microprocessor           *                  *
Scan Rate (scans per second)    50-230             300
Narrow bar resolution           .005 inches (5mil) .006 inches (6 mil)
Keyboard Wedge Interface        *                  *
Single or Dual RS-232 Interface *                  *
Wand Emulation                  *                  *
Laser Emulation                 *                  *
Cables Included                 *                  *

Item#          SCANPLUS ER                                         PRICE    COMMENT

UBI-330317-00  PC Keyboard Wedge without On/Off Button             395.00  *1
UBI-330317-20  PC Keyboard Wedge with    On/Off Button             395.00  *1
UBI-330312-00  RS-232 Interface  without On/Off Button             395.00  *2, *3
UBI-330312-20  RS-232 Interface  with    On/Off Button             395.00  *2, *3
UBI-330311-00  Wand Emulation    without On/Off Button             395.00  *1
UBI-330311-20  Wand Emulation    with    On/Off Button             395.00  *1
UBI-330313-00  IBM 4683-5B                                         395.00  *1
UBI-331313-00  IBM 4683-9A                                         395.00  *1
UBI-330315-00  OCIA NCR 7052/7053                                  395.00  *1
UBI-700304-00  Dual RS-232 Output Option                            95.00
UBI-700900-00  Standard Power Supply                                35.00
UBI-701900-00  110-240V European Power Supply                      120.00
UBI-700900-02  ScanPlus ER Dual RS-232 Power Supply                 50.00

   *1 Cable Required & Included. *2 Requires Power Supply, *3 Dual RS-232 Extra
